Not For Export
A drop-in coaxial upgrade with the flexibility to fit nearly any vehicles doors for a vast improvement over factory sound.
| Model | Mounting Hole Diameter [in, mm] |
| DSC460 | 4x6, 101x152 |
| Speaker Design | Top Mount Depth [in, mm] |
| 2 - Way | 1 11/16, 43 |
| Woofer [in, mm] | Bottom Mount Depth [in, mm] |
| 4x6, 100x160 | 2, 50 |
| Mid [in, mm] | Tweeter Protrusion [in, mm] |
| n/a | 0 |
| Tweeter [in, mm] | Grilles |
| 1/2, 13 | No |
| Rated Impedance [Ω] | Tweeter Magnet Material |
| 4 | Neodymium |
| Peak Power (watts, per ANSI/CTA-2031-A) | Tweeter Dome Material |
| 120 | PEI (polyether imide) |
| Recommended Amplifier Power (watts RMS) | Tweeter Design |
| 30 | Balanced dome |
| Sensitivity [1W, 1m] | Woofer Cone Material |
| 88 | Polypropylene |
| Frequency Response [Hz] | Woofer Surround Material |
| 50-20k | Polyester foam |
2016 DS Coaxials | Multilingual | Download

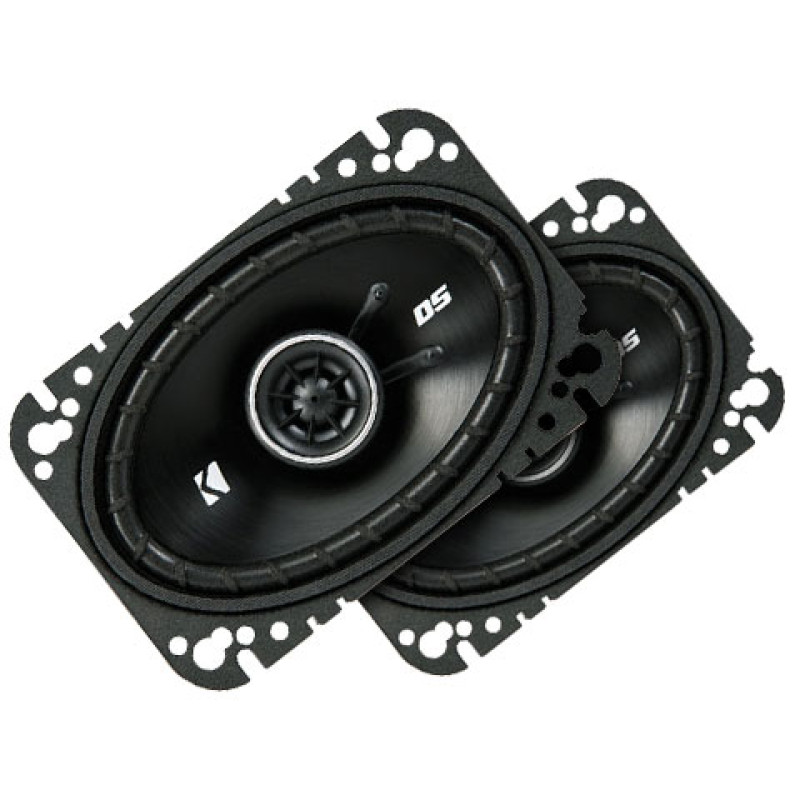

The DS 4x6-Inch Coaxial Speakers are a great way to get top-notch sound in your doors.
Using zero protrusion PEI tweeters ensures you get every bit of clarity you need, without interfering with factory grilles.
These DS speakers work best with 30 watts of recommended power.
