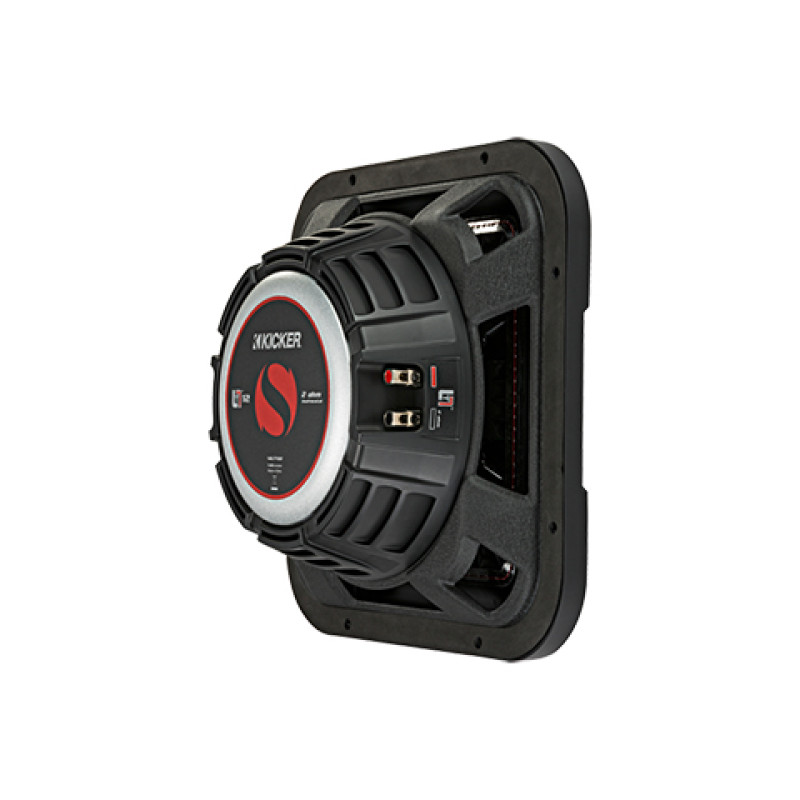

12" Solo-Baric L7T 4 Ohm (46L7T124)
12" Solo-Baric L7T 4 Ohm (46L7T124)
12" Solo-Baric L7T 4 Ohm (46L7T124)
12" Solo-Baric L7T 4 Ohm (46L7T124)
12" Solo-Baric L7T 4 Ohm (46L7T124)
12" Solo-Baric L7T 4 Ohm (46L7T124)

12" Solo-Baric L7T 4 Ohm (46L7T124)

330.00€ With Tax 24%
Ex Tax: 266.13€
Brand:
Product Code: 46L7T124
EAN: 713034085836
Stock In Stock
The only thing thin about the L7T thin subwoofer is the mounting depth. Whether it’s on the road or trail, these tough subs work perfectly in nearly anything with a motor.



Thiele/Small Parameters Mounting Depth (IN.,CM)
46L7T124 T/S Parameters 4-1/8, 9.5
Product Dimension Sheet Mounting Cutout, Square (IN.,CM)
46L7T12 Dimensions 11-1/16, 28.1
Size (IN.,CM) Min Rec Sealed Box Volume (CU. FT., Liters)
12, 30 .55, 15.6
Impedance (OHMS) Max Rec Sealed Box Volume (CU. FT., Liters)
4 DVC 1.25, 35.4
Recommended Amplifier Power (watts RMS) Min Rec Vented Box Volume (CU. Ft., Liters)**
600 1.75, 49.6
Peak Power (watts, per ANSI/CTA-2031-A) Max Rec Vented Box Volume (CU. Ft., Liters)**
1200 2.25, 63.7
Sensitivity (dB 1w/1m) What's in the box?
86.54 one 12-inch subwoofer, one owner's manual, two stickers
Frequency Response (Hz)
25-100





2019 L7T | Multilingual | Download

46L7T12 Dimensions | Download

















Product Description





12" L7T 4 Ohm

The L7T 12-inch Subwoofer is a true-bass, thin subwoofer with a pair of 4Ω voice coils.

With our custom SoloKon™ technology and the L7T’s unique interior support system, the sub sounds fat – but keeps it thin! Match any L7T thin sub with a KX-Series mono amplifier for an outstanding combination of power and size.

Features:

  • Uses a Sealed or Ported Enclosure
  • Square Sub Design Moves 20% More Air Than Round Subwoofers
  • Easily Mounts Under or Behind a Seat
  • Dual Voice Coil Design
  • Ribbed Santoprene Surround Resists Heat And Degrading
  • Bumped Top Plate For More Excursion & Smoother Performance
  • SoloKon™ Cone With 360-Degree Back Bracing
  • UniPlate™ Solid Pole Piece & Backplate For Excellent Heat Dissipation
  • Durable Steel Basket

Want setup help? Go to KICKERU for a free woofer & amplifier configuration app!

*The L7T 12-inch Subwoofer works best with a sealed or ported enclosure and 600 watts of recommended power.


Item specifics

Size [in, cm]:
12, 30
Recommended Amplifier Power [watts RMS]:
600
Peak Power [watts]:
1200
Sensitivity [dB 1w/1m]:
86.5
Impedance [OHMS]:
4 DVC
