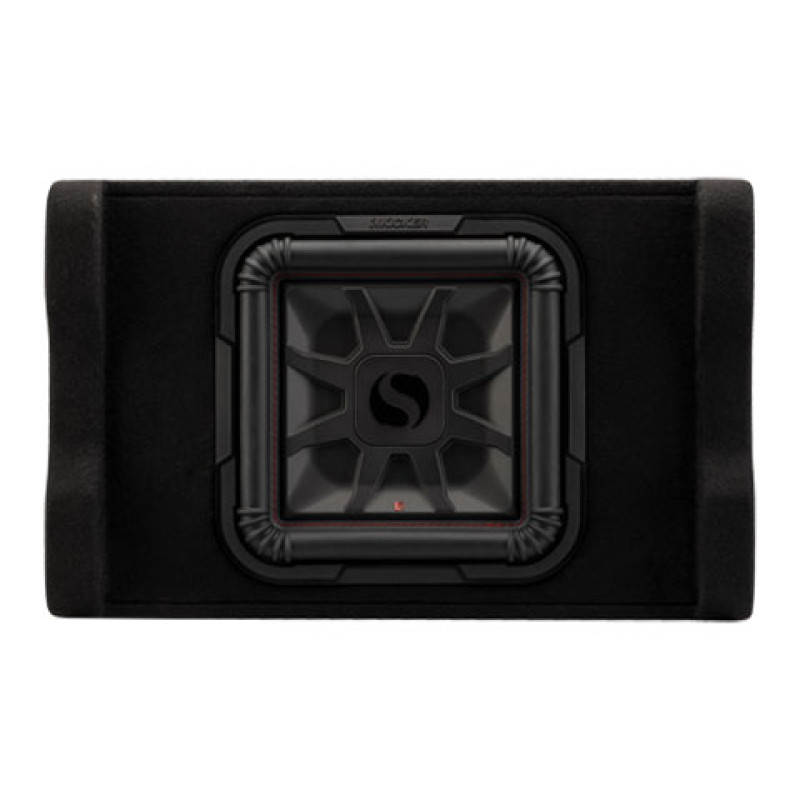

PL7TDF Powered Down-Firing 12" Enclosure (53PL7TDF12)
690.00€ With Tax 24%
Ex Tax: 556.45€
| Product Dimension Sheet | CROSSOVER |
| 53PL7TDF12 Dimensions | active 24dB/octave, variable 50-120Hz low pass; 24dB/octave, high pass at 25Hz |
| TYPE | BOX HEIGHT (in, cm) |
| powered down-fire | 7-7/8, 20.2 |
| WOOFER SIZE (in, cm) | BOX DEPTH (in, cm) |
| 12, 30 | 15, 38 |
| RMS POWER (watts at 14.4V) | BOX WIDTH (in, cm) |
| 600 | 23-7/8, 60.5 |
| PHASE SWITCH | |
| 0-180° | |
| FREQUENCY RESPONSE (Hz) | |
| 25-120 | |
| S-TO-N RATIO (A-weighted, re: rated power) | |
| >90dB | |
| INPUT SENSITIVITY | |
| Low Level – 125mV-5V; High Level – 1V-40V | |
PL7TDF | Download
Product Description
Powerful and Down-Firing - It Means Business!
- Compact, factory-tuned enclosure for tight locations to fit many trucks and SUVs
- Two models available – 12-inch sub with 600-watt amp, or a 10-inch sub with 500-watt amp
- Amp is built-in and power-matched for the hardest-hitting bass
- Easily integrates with factory system
- Down-firing for ultimate subwoofer protection
- Thick, tough internal bracing to resist stacking weight
- Solo-Baric L7 square technology for moving more air and creating more bass
- Start/Stop-System Compatible
- Remote bass control included
If you have two mono amps or powered subwoofers, check out the DBRC Remote for controlling both from the same knob.
Item specifics
Woofer Size [in, cm]:
12, 30
Amp. Power [watts RMS]:
600
Crossover:
Thin down-firing
Type:
12dB/octave Lowpass 50–120Hz
24dB/octave Highpass @ 25Hz
Box Dimensions [in,cm]:
Depth: 15, 38
Height : 7-7/8, 20.2
Width: 23-7/8, 60.5
