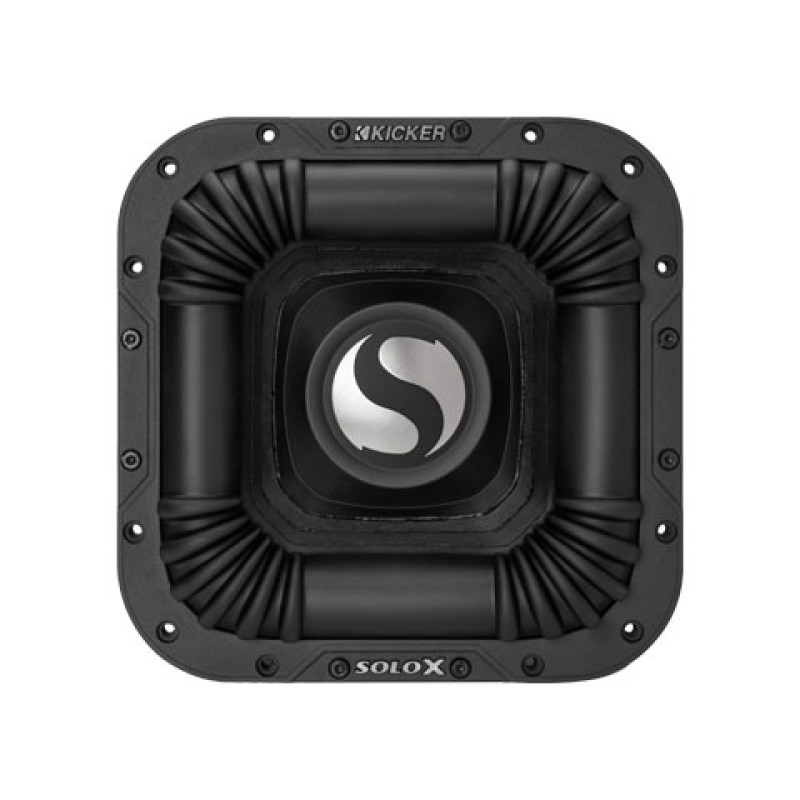

10" SoloX L7X 2 Ohm (49L7X102)
10" SoloX L7X 2 Ohm (49L7X102)
10" SoloX L7X 2 Ohm (49L7X102)
10" SoloX L7X 2 Ohm (49L7X102)
10" SoloX L7X 2 Ohm (49L7X102)
10" SoloX L7X 2 Ohm (49L7X102)

10" SoloX L7X 2 Ohm (49L7X102)

785.00€ With Tax 24%
Ex Tax: 633.06€
Brand:
Product Code: 49L7X102
EAN: 713034018353
Stock Available October 2026
The SoloX L7X revived KICKER advanced bass technology and extreme power handling – made to turn heads!
Thiele/Small Parameters Product Dimension Sheet
49L7X102 T/S Parameters 49L7X10 Dimensions
CNC Files Top Plate Thickness (in, mm)
L7X.DXF - for subwoofer hole cutouts 0.5, 13
3D Print Files Xmax (in, mm)
L7X.SLDPRT - 3D-printing of grille spacers 1.25, 31.25
Size (in, cm) Mounting Cutout (in, cm)
10, 25 9-5/16, 23.7
Rated Impedance (Ohms) Mounting Depth (in, cm)
2 DVC 9-7/16, 24
Rec Amp Power rms Recommended Vented Box Volume (Cu. Ft., L)
1000-2000 2, 56.6
Frequency Response Port Opening (in x in, cm x cm)
25-100 2.5 x 12.25, 6 x 31
Magnet Diameter (in, cm) Port Length (in, cm)
8-11/16, 22 38.5, 98
Total Magnet Weight (oz, kg) Vented Enclosure Tuning Frequency (Hz)
406, 11.5 31
Voice Coil Diameter (in, mm)
3, 75
Voice Coil Winding Width (in, mm)
2.5, 62.5




Customer Info Card | Download

Manual | Download



























Product Description













Features:

  1. Field-Replaceable Recone Kit – cone/voice coil/spider assembly, and no gluing required
  2. Forced Air Cooling™
  3. Three-inch, aluminum voice coil former
  4. Dual-spider suspension
  5. Double-pressed pulp cone
  6. Heavy-duty UV-resistant Santoprene surround
  7. Custom rubber magnet boot
  8. Cast-aluminum basket
  9. Single 8 AWG terminal and dual 8 AWG terminal block
  10. Triple-Stacked Ferrite Magnet

*SoloX 12" shown in diagram.
























Item specifics

Size [in, cm]:
10, 25
Recommended Amplifier Power [watts RMS]:
2000
Impedance [OHMS]:
2 DVC
Voice Coil Diameter (in, mm):
3, 75
